[MyBatis] CRUD 기본 구조 설정하기

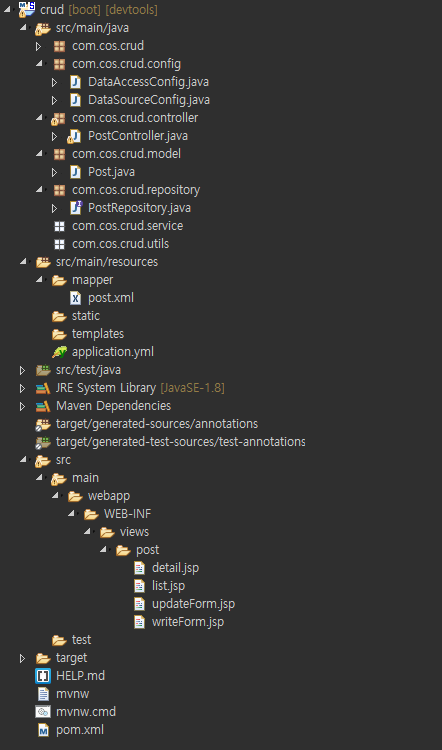

​crud Project



1. Create model pakage

* VO (Value Object)

; database와 mapping되는 클래스 파일

현재는 model로 바뀜

​​

2. Create repository pakage

* DAO(Data Access Object)

현재는 repository로 바뀜

​

3. Create service pakage, Create utils pakage

​

4. Create controller pakage

​

5. Create config pakage

1) DataAccessConfig.java

; pakage 이름 확인해서 변경하기

2) DataSourceConfig.java

​

6. application.yml 설정

server:
  port: 8080
  servlet:
    context-path: /

spring:
  mvc:
    view:
      prefix: /WEB-INF/views/
      suffix: .jsp

  datasource:
    url: jdbc:mysql://localhost:3306/cos?serverTimezone=Asia/Seoul
    driver-class-name: com.mysql.cj.jdbc.Driver
    username: cos
    password: Bitc5600!



7. src/main/resources 폴더에 mapper folder 생성

1) post.xml file 생성하고 mapper file 설정해주기

​

8. model package에 Post class file 생성

package com.cos.crud.model;

import java.sql.Timestamp;

import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data //getter,setter
@NoArgsConstructor
@AllArgsConstructor
@Builder
public class Post {
	private int id;
	private String title;
	private String content;
	private int userId; //FK
	private Timestamp createDate;
}



9. repository package에 PostRepository(Interface) 생성

package com.cos.crud.repository;

import java.util.List;

import com.cos.crud.model.Post;

// 원래 방식은 @Repository가 필요하지만
// DataAccessConfig에서 MappeScan을 할 때
// 메모리(Spring Container)에 로드되고
// 싱글톤으로 관리된다.
public interface PostRepository {
	List<Post> findAll();//전체보기
	void save(Post post);//글쓰기
	void update(Post post);//수정하기
	void delete(int id);//삭제하기
	Post findById(int id);//상세보기
}



10. controller package에 PostController file 생성

package com.cos.crud.controller;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import com.cos.crud.model.Post;
import com.cos.crud.repository.PostRepository;

@Controller
@RequestMapping("/post")
public class PostController {

	@Autowired
	private PostRepository postRepository;

	// GET =] http://localhost:8080/post
	// GET =] http://localhost:8080/post/
	// Model은 데이터를 Controller에서 Presentation 계층까지 들고간다.
	@GetMapping("")
	public String post(Model model) {
		List<Post> posts = postRepository.findAll();
		model.addAttribute("posts", posts);
		return "/post/list";
	}

	// POST =] http://localhost:8080/post/update
	@PostMapping("/update")
	public String update(Post post) {// param, form
		try {
			postRepository.update(post);
			return "redirect:/post";
		} catch (Exception e) {
			e.printStackTrace();
		}
		return "redirect:";
	}

	// GET =] http://localhost:8080/post/updateForm
	@GetMapping("/updateForm/{id}")
	public String updateForm(@PathVariable int id, Model model) {
		Post post = postRepository.findById(id);
		model.addAttribute("post", post);
		return "post/updateForm";
	}

	// @RequestParam("id")
	// @RequestBody = JSON
	// POST =] http://localhost:8080/post/delete/1
	@GetMapping("/delete/{id}")
	public String delete(@PathVariable int id) {
		try {
			postRepository.delete(id);
			return "redirect:/post";
		} catch (Exception e) {
			e.printStackTrace();
		}
		return "redirect:";
	}

	// POST =] http://localhost:8080/post/save
	@PostMapping("/save")
	public String save(Post post) {
		try {
			postRepository.save(post);
			return "redirect:/post";
		} catch (Exception e) {
			e.printStackTrace();
		}
		return "redirect:";
	}

	// POST =] http://localhost:8080/post/1
	@GetMapping("/{id}")
	public String detail(@PathVariable int id, Model model) {
		Post post = postRepository.findById(id);
		model.addAttribute("post", post);
		return "post/detail";
	}

	// GET =] http://localhost:8080/post/writeForm
	@GetMapping("/writeForm")
	public String writeForm() {
		return "post/writeForm";
	}
}



11. /crud/src/main/webapp/WEB-INF/views/post



- detail.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
	<p>제목 : ${post.title}</p>
	<p>작성자 : ${post.userId}</p>
	<p>작성일 : ${post.createDate}</p>
	<p>내용 : ${post.content}</p>
	<a href="/post/updateForm/${post.id}">수정하기</a>
	<a href="/post/delete/${post.id}">삭제하기</a>
</body>
</html>



- list.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
	<table border="1">
		<tr>
			<th>번호</th>
			<th>제목</th>
			<th>날짜</th>
		</tr>
		<c:forEach var="post" items="${posts}">
		<tr>
		<td>${post.userId}</td>
		<td><a href="post/${post.id}"> ${post.title}</a></td>
		<td>${post.createDate}</td>
		</tr>
		</c:forEach>
	</table>
	<a href="/post/writeForm">글쓰기</a>
</body>
</html>



- updateForm.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
	<form action="/post/save" method="post">
		<input type="text" value="${post.title}" name="title" placeholder="title"><br>
		<input type="hidden" value="${post.id}">
		<textarea rows="5" cols="20" name="content">${post.content}</textarea><br>
		<input type="submit" value="전송">
	</form>
</body>
</html>



- writeForm.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
	pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
	<form action="/post/save" method="post">
		<input type="text" name="title" placeholder="title"><br>
		<textarea rows="5" cols="20" name="content"></textarea><br>
		<input type="submit" value="전송">
	</form>
</body>
</html>



12. post.xml 작성하기

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.cos.crud.repository.PostRepository">
	<select id="findAll" resultType="com.cos.crud.model.Post">
		SELECT * FROM post ORDER BY id DESC
	</select>
	<select id="findById" resultType="com.cos.crud.model.Post">
		SELECT * FROM post WHERE id = #{id}
	</select>
	<insert id="save">
		INSERT INTO post(title,content,userId,createDate)
		VALUES(#{title},#{content},#{userId},now())
	</insert>
	<update id="update">
		UPDATE post SET title =#{title},content= #{content}
		WHERE ID=#{id}
	</update>
	<delete id="delete">
		DELETE FROM post WHERE id = #{id}
	</delete>
</mapper>
